Retaining walls serve the important role of holding back soil and rock, just as dams hold backwater.
In this article, we showed that granular materials, such as soil and rock, generate horizontal pressures that increase linearly with depth.
Retaining walls must resist these pressures, and many strategies exist for doing so. In this Civil Experience Article, we focus on a popular, L-shaped, cantilever design (L shaped retaining wall design theory)
Retaining walls
If you were going to use an L-shaped Retaining wall to hold back soil and rock, as represented by these marbles, would you point the bottom leg toward the marbles or away from them?
Many people would say that the base of the “L shape” should face away from the marbles.
They probably realize that it is hard to tip the wall over toward the left if the bottom leg points in that direction. In engineering, we call tipping like this “overturning”.
| List of Civil Experience Excel Spreadsheet | |
|---|---|
| Collection of Civil Excel Spreadsheet | Click Here |
| Advance Concrete Mix Design As Per IS | Click Here |
| Concrete Mix Design as Per IS Code (Lite) | Click Here |
| DESIGN OF ISOLATED RCC FOOTING | Click Here |
| Combined Footing Design Excel Sheet | Click Here |
| One Way Continue Slab Design Excel | Click Here |
| One Way Simply Supported Slab Design | Click Here |
| Design of Two Way Slab by EXCEL Sheet | Click Here |
| Design Terrace Slab Excel Sheet Easy Way | Click Here |
| Two Flight Stair Case With Chajja Design | Click Here |
| Design of Three Flight Open Well Stair | Click Here |
| Brick Mortar Calculation | Click Here |
| Concrete Mix Design Quantity Calculation | Click Here |
If the bottom leg points the other way around, it is easy to make the wall overturn so easy, in fact, that I can do it with just a puff of air. It looks like the case is closed. Or is it?
Retaining walls Model Example
Before we declare a final verdict, let’s use the model to find out what happens when the bottom leg points to the left, away from the marbles.
As we add marbles, we discover that the horizontal forces they produce create yet another mode of failure, namely sliding of the wall and this occurs when the marbles reach a depth of 3 centimetres.
In the model, we can increase the friction between the retaining wall and the base by placing a rubber mat between them.
You will have to do some extra reading if you want to find out how they achieve this end in the real world.

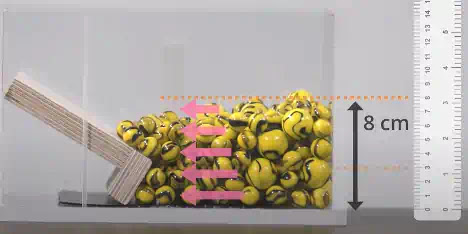

As you can see, increasing the friction allows our model wall to support a noticeably greater depth of marbles. But it still eventually fails by overturning, in this case, when the depth reaches 8 centimetres.
Now, let’s turn the wall around so its bottom leg points toward the right, the side where the marbles will be placed.

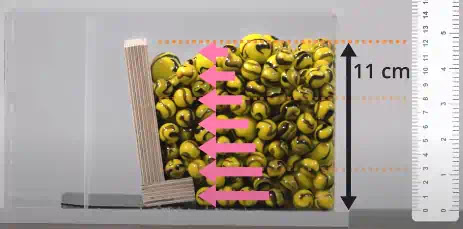

We again use a rubber sheet to prevent sliding, and we add some marbles. As before, the marbles generate a horizontal force that depends on the marble depth. You might be surprised that this wall can hold back 11 centimetres of marbles before it overturns.
