How to take out quantity of concrete for 11.7 cubic meter? | [Powerful] Concrete Calculator

Rate this post

In this civil experience article, we provide you best solution/answer for calculating the quantity of concrete fast and in an accurate way that saves your time and effort

Here your question is incomplete means a shortage of information such as the grade of concrete which must need to calculate the quantity of concrete but Civil Experience provide a solution for M5, M7.5, M10, M15, M20, M25.

Most useful in general work is M20 grade of concrete and M25 concrete grade

Concrete mix design calculations are an extremely sensitive part from point of view of the cost of a construction project because in the civil engineering construction field topmost margin cover by construction material so calculate concrete mix comes in topmost priority

    Concrete Quantity Calculation

    Now comes on your solution you provide a volume of concrete which is 11.7 cubic meters but we must need the grade of concrete to calculating cement, calculating sand and aggregate so here I provide all possible concrete mix calculation quantities and refer to which you need

    Before going into that particular grade of concrete I explain which you get by those answers and which quantion is to solve

    • How many cement bags do I need?
    • Cement quantity need for construction of 11.7cubic meter?
    • Sand required for 11.7 cu.m concrete
    • Aggregate needed for 11.7 meter cube concrete… etc
    • We calculate concrete calculation in cft and cubic meter also in kg for you
    Note
    • Wet volume of concrete is 11.7 mand the Dry Volume of Concrete is 18.018 m3
    • We assume Fine aggregate density is 1500 and Coarse aggregate density is 1600 (if you want to download an excel sheet for change density click here)
    • We use Civil Experience mix design Excel sheet for calculating mix design quantity

    Quantity of Concrete for M5 grade of Concrete

    Mix design ratio for M5 grade of concrete is 1:5:10 (1 part cement:5 part of fine aggregate:10 part of course aggregate)

    Discount Offer Valid Only for This Month. Buy this Premium civil engineering excel sheet. Hurry fast before the offer ends

    Also Read: Best Cement Calculator << Find Cement Quantity Online

    Cement Quantity

    Cement bags required for M5 concrete grade for 11.7 m3 is 32.43 so 33bags needed

    Cement required in KG

    1621.62

    Cement required in cubic feet

    39.76

    Cement required in a cubic meter

    1.13

    Fine Aggregate Quantity

    Fine Aggregate required in KG

    8445.94

    Fine Aggregate required in cubic feet

    198.82

    Fine Aggregate required in a cubic meter

    5.63

    Coarse Aggregate Quantity

    Coarse Aggregate required in KG

    18018

    Coarse Aggregate required in cubic feet

    397.63

    Coarse Aggregate required in cubic meter

    11.26


    Quantity of Concrete for M7.5 grade of Concrete

    Mix design ratio for M7.5 grade of concrete is 1:4:8 (1 part cement:4 part of fine aggregate:8 part of course aggregate)

    Cement Quantity

    Cement bags required for M7.5 concrete grade for 11.7 m3 is 39.92 means 40 bags needed

    Cement required in KG

    1995.84

    Cement required in cubic feet

    48.94

    Cement required in cubic meter

    1.39

    Fine Aggregate Quantity

    Fine Aggregate required in KG

    8316

    Fine Aggregate required in cubic feet

    195.76

    Fine Aggregate required in cubic meter

    5.54

    Coarse Aggregate Quantity

    Coarse Aggregate required in KG

    17740.8

    Coarse Aggregate required in cubic feet

    391.52

    Coarse Aggregate required in a cubic meter

    11.08


    Quantity of Concrete for M10 grade of Concrete

    Mix design ratio for M10 grade of concrete is 1:3:6 (1 part cement:3 part of fine aggregate:6 part of course aggregate)

    Cement Quantity

    Cement bags required for M10 concrete grade for 11.7 m3 is 51.89 so 52 cement bags required

    Cement required in KG

    2594.59

    Cement required in cubic feet

    63.62

    Cement required in cubic meter

    1.80

    Fine Aggregate Quantity

    Fine Aggregate required in KG

    8108.1

    Fine Aggregate required in cubic feet

    190.86

    Fine Aggregate required in cubic meter

    5.41

    Coarse Aggregate Quantity

    Coarse Aggregate required in KG

    17297.28

    Coarse Aggregate required in cubic feet

    381.73

    Coarse Aggregate required in cubic meter

    10.81


    Quantity of Concrete for M15 grade of Concrete

    Mix design ratio for M15 grade of concrete is 1:2:4 (1 part cement:2 part of fine aggregate:4 part of course aggregate)

    Cement Quantity

    Cement bags required for M15 concrete grade for 11.7 m3 is 74.13 so 74 cement bags needed

    Cement required in KG

    3706.56

    Cement required in cubic feet

    90.89

    Cement required in cubic meter

    2.57

    Fine Aggregate Quantity

    Fine Aggregate required in KG

    7722

    Fine Aggregate required in cubic feet

    181.76

    Fine Aggregate required in cubic meter

    5.15

    Coarse Aggregate Quantity

    Coarse Aggregate required in KG

    16473.6

    Coarse Aggregate required in cubic feet

    363.55

    Coarse Aggregate required in cubic meter

    10.30


    Quantity of Concrete for M20 grade of Concrete

    Mix design ratio for M20 grade of concrete is 1:1.5:3 (1 part cement:1.5 part of fine aggregate:3 part of course aggregate)

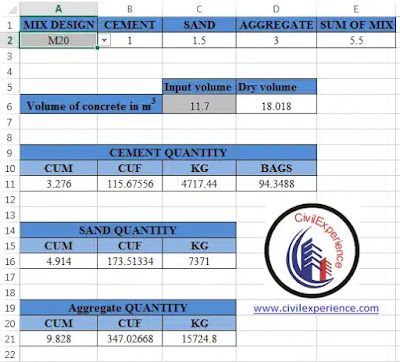

    Concrete Quantity Calculator
    Concrete Quantity Calculator

    Cement Quantity

    Cement bags required for M20 concrete grade for 11.7 m3 is 94.35 so 95 bags needed

    Cement required in KG

    4717.44

    Cement required in cubic feet

    115.68

    Cement required in cubic meter

    3.28

    Fine Aggregate Quantity

    Fine Aggregate required in KG

    7371

    Fine Aggregate required in cubic feet

    173.51

    Fine Aggregate required in cubic meter

    4.91

    Coarse Aggregate Quantity

    Coarse Aggregate required in KG

    15724.8

    Coarse Aggregate required in cubic feet

    347.03

    Coarse Aggregate required in cubic meter

    9.83


    Quantity of Concrete for M25 grade of Concrete

    Mix design ratio for M25 grade of concrete is 1:1:2 (1 part cement:1 part of fine aggregate:2 part of course aggregate)

    Cement Quantity

    Cement bags required for M25 concrete grade for 11.7 m3 is 129.73 so 130 cement bags needed

    Cement required in KG

    6486.48

    Cement required in cubic feet

    159.05

    Cement required in cubic meter

    4.5

    Fine Aggregate Quantity

    Fine Aggregate required in KG

    6756.75

    Fine Aggregate required in cubic feet

    159.05

    Fine Aggregate required in cubic meter

    4.50

    Coarse Aggregate Quantity

    Coarse Aggregate required in KG

    14414.4

    Coarse Aggregate required in cubic feet

    318.11

    Coarse Aggregate required in cubic meter

    9.00

    FAQ 1: How many Cement bags required for 1m3 of M20 concrete?

    For M20 grade of concrete you reuqired 8 cement bag

    FAQ 2: How many Cement bags required for 1m3 of m25 concrete?

    For M25 grade of concrete you reuqired 11 cement bag
